알파라발 Hermetic 디자인
Hermetic 디자인이 적용된 원심분리기는 제품을 세심하게 다루어 최상의 제품 품질을 지원합니다. 전단력과 전력 소비를 줄이며 산소 포집을 방지합니다. 공정 유체에 공기가 없는 환경은 더 나은 공정 제어와 최적의 공정 조건을 보장합니다. Hermetic Design을 사용하면 볼 내부의 유리한 유체 역학으로 인해 분리기의 에너지 소비가 줄어듭니다. 이 디자인은 또한 CIP(Cleaning-in-place) 주기를 최적화하여 CIP 유체가 제품에 닿는 모든 부품과 접촉하도록 보장합니다.
Features
- Airtight bottom-feed inlet
- Smooth flow paths
- Airtight outlet
Advantages
- No oxidation of product
- Gentle handling of shear-sensitive fluids
- High degree of flexibility and wider flow range without having to adjust separator hardware
- Higher product quality
- Up to 40% in energy savings
Benefits
- Lower shear for smooth acceleration of the feed and gentle product flow
- No oxygen pick-up, no air interface
- Higher separation efficiency
- No loss of volatile components
- Higher degree of process control
- Less energy consumption
- Efficient cleaning-in-place (CIP)

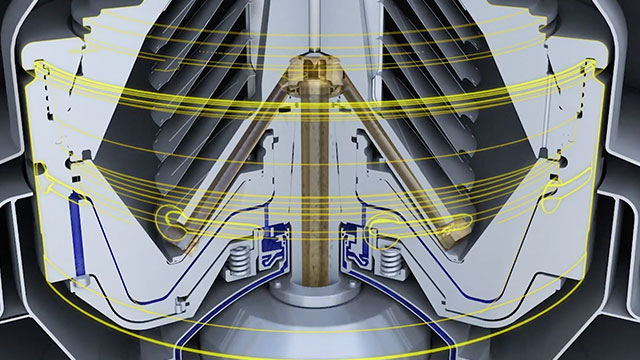

How Hermetic Design works
From the separator’s airtight bottom-fed inlet zone, feed enters the separator through a closed hollow spindle, which prevents oxygen pickup. The bowl with its carefully engineered outlets effectively eliminates any air-liquid interface inside the separator. Low shear in the feed inlet zone secures gentle product acceleration into the separator, and low shear in the bowl ensures gentle product handling during the separation process. This minimizes product loss and increases separation efficiency. Hermetic Design, for instance, prevents the destruction of the cell walls for biotech processes and emulsification in dairy and edible oil processes.
Hermetic Design: an expert view
Our expert in life-science and industrial fermentation applications has been working with separation technology for more than 30 years. Watch this video to hear him explain the inner workings of the Hermetic Design technology. Learn more about the various benefits it can bring to products across a wide spectrum of different industries and applications.
eDrive™ and Hermetic Design mean energy and cost efficiency
Take a closer look at Alfa Laval’s unique Hermetic Design concept. This animation goes inside an Alfa Laval separator to give you a better view of how the technology works. It explains how Hermetic Design in combination with our eDrive direct-drive system provides market-leading energy efficiency along with market-leading cost savings.
알파라발 기능을 활용
알파라발의 모든 분리기는 지난 130여 년간 축적한 디스크 스택 분리 기술 경험과 고객 프로세스에 대한 당사의 깊은 지식을 바탕으로 개발되었습니다. 이러한 모든 전문 지식이 분리 성능 향상을 위한 고유 기능에 어떻게 적용되었는지 확인하십시오.
