PlusClean®

알파라발 PlusClean ® 세정 장치가 위생 공정에서 탱크 클리닝에 혁명을 일으킬 수 있습니다. 상단 장착형 탱크 세정 장치와 페어링된 PlusClean ®은 탱크 벽 또는 바닥에 원활하게 통합됩니다. CIP(Cleaning-in-Place) 도중에 활성화되면 가압 청소fan으로 쉽게 세척되지 않는 영역을 세정합니다. 100% 세정, 물 및 세척제 비용이 최대 80% 절감되며, 세정후 오염 물질 0%를 보장합니다.

PlusClean tank cleaning nozzle

Boost product yield higher with unprecedented 100% tank cleaning coverage

  • Get 100% impact cleaning coverage
  • Up to 80% reduction in water and cleaning media consumption
  • Eliminate product contamination risks and raise product yield
  • Meet the highest hygienic requirements
  • Low total cost of ownership due to very low maintenance requirements and reduced water, cleaning media and wastewater costs

Thorough tank cleaning eliminates the risk of contamination which can affect the productivity of your hygienic processes. Using the easy-to-install Alfa Laval PlusClean® cleaning device effectively does away with virtually all contamination risks in your process tanks. With its optimized, high-impact spray pattern, the PlusClean® delivers 100% cleaning coverage in shadow areas, such as beneath agitator blades, coils and connections, that top-mounted tank cleaning devices miss. Faster, safer contaminant-free changeovers are now possible, boosting batch or continuous process productivity in the food, beverage and personal care industries. This increases product yield and speeds return on investment while lowering total cost of ownership.

.
PlusClean nozzle spray pattern 1
PlusClean nozzle spray pattern 2
PlusClean nozzle spray pattern 3

Extremely versatile

The PlusClean® optimizes the cleaning efficiency of the primary cleaning device, regardless of whether a static spray ball, rotary spray head or a rotary jet head. Depending on the overall design of your tank, you can configure the cleaning device either in the tank wall or on the tank bottom. Choose one of three different spray patterns and one of two different weld plates for mounting to customize your cleaning device to your requirements.

Special product line

In addition to the standard Alfa Laval PlusClean® with a piston activated by the cleaning media, a special pneumatic version is available. The pneumatic version activates the piston using controlled air pressure. When used together with the Alfa Laval ThinkTop, you have a full overview of your tank cleaning process, including feedback signals such as open/closed and purging option.

Service

Count on extended equipment performance and more uptime due to low-wear components that are easy to replace on site, minimizing downtime. The PlusClean® cleaning device has no moving parts that extend into or retract from the tank. Durable, reliable genuine parts from Alfa Laval deliver outstanding performance, lower your total cost of ownership and preserve the value of your equipment throughout its entire life cycle.

.

How it works

The Alfa Laval PlusClean® cleaning device is installed flush with the tank wall and/or tank bottom. Activated either by the cleaning media or by controlled air pressure, the device creates a high impact force spraying cleaning media in a fan pattern directly onto the soiled area. Cleaning coverage is ensured through controlled and repeated rotation of the shaft and agitator blades.



Upon completion of the cleaning cycle, the integrated spring mechanism restores the piston to its original position, securely closing and sealing off the cleaning device. If purging is required, always operate with the actuator.








Safeguard cheese production with 100% cleaning coverage of tank shadow areas



To increase cheese production by expanding its milk reception, a large Scandinavian dairy turned to the Beritech Group, an experienced tank and system builder. The objective was to guarantee complete cleaning coverage for two new 30-metre-high raw milk silos with bottom-mounted agitators.



Read the case story here

Cheese factory 640X360.jpg

.

100% cleaning coverage
.

How clean is your tank?

Alfa Laval PlusClean® and Alfa Laval PlusClean® UltraPure is a revolution in hygienic tank cleaning. When activated during Cleaning-in-Place (CIP), PlusClean hits shadow areas with a fan of pressurized cleaning media, giving you the market’s first guarantee of 100% impact cleaning coverage.

PlusClean brochure image 640x360
.

360° Service and maintenance videos

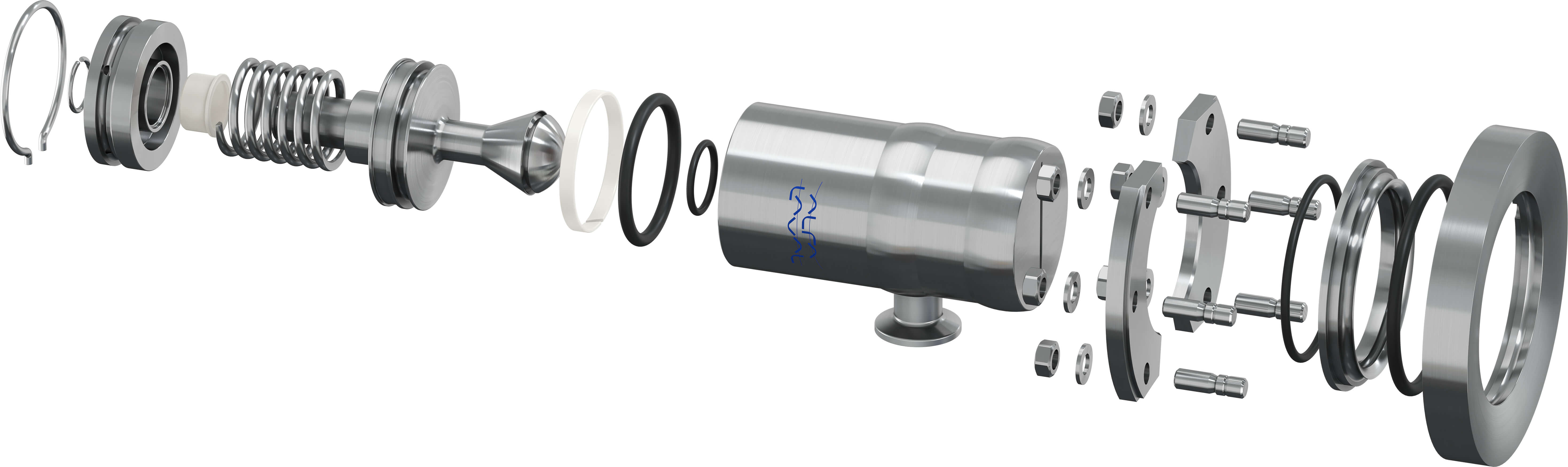

How to assemble the Alfa Laval PlusClean®

How to disassemble the Alfa Laval PlusClean®

You might also be interested in…

TJ40G/TJ20G

The TJ range of rotary jet heads is designed for hygienic applications such as food, dairy, beverage and personal care. Available in various sizes and different configurations covering any tank size.

TJ series rotary jet head

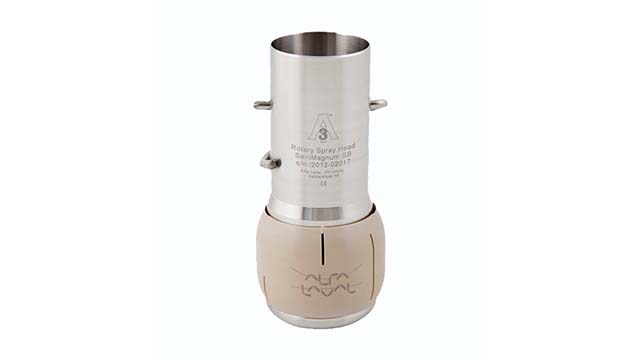

SaniMagnum SB
